Description
The EVGA 550 N1 550W Power Supply (100-N1-0550-L1) is a reliable and cost-effective choice for your new build or system upgrade. It offers robust power delivery, efficient cooling, and comprehensive protection features to ensure your system runs smoothly and securely.
Key Features:
- Power Output: 550W maximum power, with a strong single +12V rail providing up to 43A, ideal for supporting performance-class graphics cards and CPUs.
- Cooling: Equipped with a near-silent, thermally controlled 120mm sleeve bearing fan for optimized cooling and low noise levels.
- Protection: Includes heavy-duty protection features such as Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).
Specifications:
- Type: ATX12V / EPS12V
- Efficiency: 75% typical
- Main Connector: 24Pin
- +12V Rails: Single
- PCI-Express Connectors: 2 x 6+2-Pin
- SATA Power Connectors: 6
- Modular: No
- Input Voltage: 100 – 240 V
- Input Frequency Range: 50/60 Hz
- Input Current: 8 – 4 A

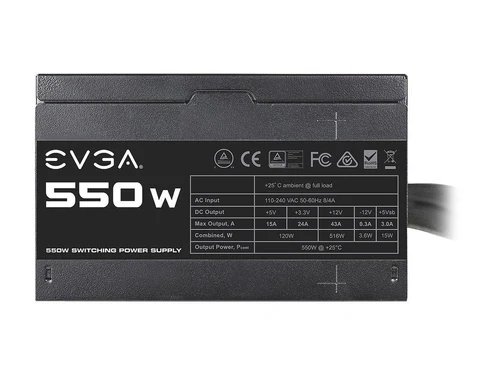

- Output:
- +3.3V@24A
- +5V@15A
- +12V@43A
- +5Vsb@3A
- 12V@0.3A
- MTBF: 100,000 hours
- Approvals: TUV, cUL, CE, FCC, BSMI, CCC, WEEE, RoHS
- Dimensions: 3.35″ x 5.91″ x 5.51″
- Weight: 3.00 lbs

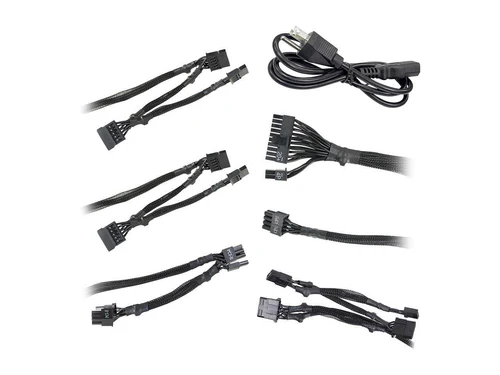

Connectors:
- 1 x 24 Pin ATX
- 1 x 8-pin (4+4) EPS (CPU)
- 2 x 8-pin (6+2) PCIe
- 6 x SATA
- 3 x Four-Pin Peripheral
- 1 x Floppy
