Description

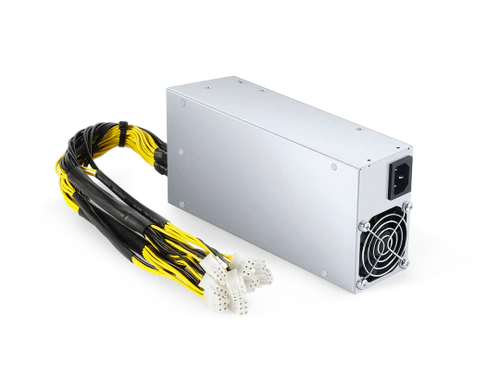

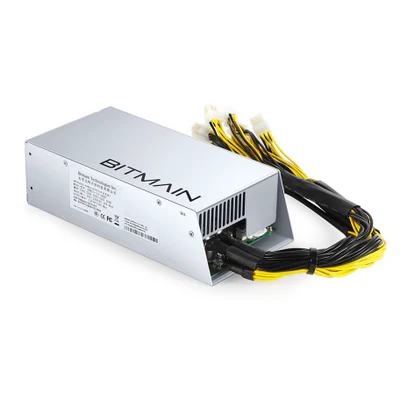

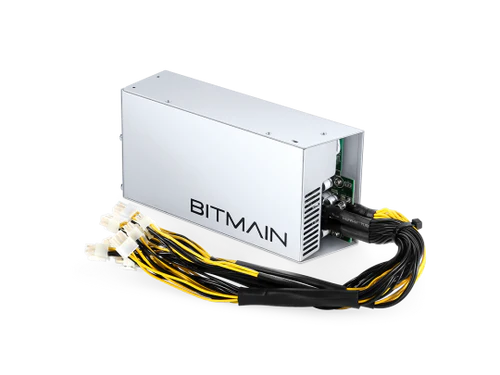

The Bitmain APW7 1800W PSU is a certified refurbished power supply unit designed to deliver reliable and efficient power to your mining operations. With a 30-day warranty included, this PSU might show signs of wear and tear but functions perfectly to support high-performance mining rigs.
Key Features:
- Certified Refurbished: Includes a 30-day warranty with potential wear and tear, ensuring it functions as expected.
- High Output Power: Delivers 1800W of power with a 200-240V input, and 800W with a 100-140V input.
- Protection Features: Equipped with short circuit protection, overcurrent protection, and overheat protection.
- Efficiency: High power factor (>0.99) at full load, with ripple and noise under 1%.
Specifications:
- Output:
- DC Voltage: 12.0V
- Rated Current (200-240V input): 150A
- Rated Power (200-240V input): 1800W
- Rated Current (100-140V input): 67A
- Rated Power (100-140V input): 800W
- Ripple & Noise: <1%
- Voltage Accuracy: 12.0-12.5V
- Line Regulation: <1%
- Load Regulation: <1%
- Setup Time: <2S
- Short Circuit Protection: >10mS
- Input:
- Voltage Range: 100-140 / 200-240V AC
- Frequency Range: 50/60Hz
- Power Factor: >0.99 (full load)
- Leakage Current: <1.5mA (220V 50Hz)
- Protection:
- Low-voltage Input: 80-89V AC
- Output Short Circuit: Yes
- Output Overcurrent: 150-200A
- Overheat Protection: Yes
- Environment:
- Operating Temperature: -20-60℃
- Operating Humidity: 20%-90% RH (non-condensing)
- Altitude: < 2000m
- Structure:
- Dimensions: 206 x 110 x 62mm
- Weight: 2.0kg
- Cooling System: Forced-air cooling
- Noise: 43DB
